Engines: UA, UC (704-30)

Diameter STD: 97mm
Combusion cam dia: 47mm
Piston rings: 2x2x4
Piston pin: 30mm x 75mm
Compresion high: 54,50 mm
Total high: 89,70 mm
Depth: -20mm

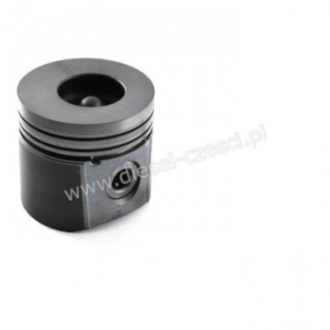

The piston is sold complete with pin and clips.
Please make sure you have determined the correct piston size that you will need.
Pistons mounted or showing signs of mounting the engine will not be returned

Cross numbers: U5LL0046B U5LL0035B U5LL0032B U5LL0023B U5LH0004B U5LL0045B 3135J295 516K05501

Please verify part number prior to order. Need more information? You did not find what you are looking for parts?
